Kirium Wall
Overview
Specification
Dimensions
Downloads (7)
Enquire now
kirium wall ds product slider product image lighting 2000x1572px

High-performance wall luminaire

Market-leading LED wall luminaire offering superior optical performance and control, simple installation and significant energy savings. Where lighting for comfort and well-being are paramount, consider SunLike™: an award-winning technology that matches the spectrum of natural sunlight.

  • Available in 2700K, 3000K, and 4000K
  • Integral CMS and emergency options available
  • Wide spacings of 20m+ achievable
  • International Dark-Sky Association approved (3,000K or warmer colour temperature options only)

Request a quote

Products in this range

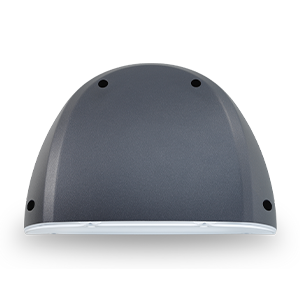

kirium wall 300x300px

Kirium Wall

Weight: 3.5kg

   LED qty: 8-16

Optical Performance

 Asymmetric narrow optic 548x340px

Narrow (A1) - for pathways

Asymmetric medium optic 548x340px

Medium (A5) - wider paths and area lighting

Asymmetric wide optic 548x340px

Wide (C2) - for service yards and carparks

Contact us to find out more

Kirium Wall

Controls

Kirium Wall can provide a range of controls from factory set dimming, photocells, and emergency and presence detectors; providing control in its simplest form.

Dark Skies

For light where needed: not contributing to sky glow or disturbing neighbours - choose Kirium Wall. International Dark-Sky Association approved with 0% ULOR (3,000K or warmer CCTs only).

SunLike™ LED

For schemes where light for health and wellbeing is paramount, consider the award-winning SunLike™ solution: a technology attuned to our circadian rhythm that mimics natural daylight's spectral power distribution (SPD).

Simple, speedy installation

Contractor friendly and lightweight, the Kirium Wall features a first fix-back mounting plate and automatic electrical disconnection for simple, time-saving installation, with BESA mounting for conduit applications.

More about SunLike™

Contact us

Our functional lighting

Check out our brochure

Standard colours

RAL 9016 White colour swatch 548x548px

RAL 9016

White

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 7035 Light grey colour swatch 548x548px

RAL 7035

Light grey

RAL 7046 Textured grey colour swatch 548x548px

RAL 7046

Mid grey

RAL 9006 Textured aluminium colour swatch 548x548px

RAL 9006

Aluminium

RAL 9007 Textured metallic grey colour swatch 548x548px

RAL 9007

Metallic grey

DB 703 Textured metallic dark grey colour swatch 548x548px

DB 703

Metallic dark grey

Corten Brown colour swatch 548x548px

Corten Brown



 To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
UKCA, CE
Mounting Height (m):
4 - 10 m
Applications:
Buildings
Area lighting
Paths & walkways

Lighting

Light source:
High power LED
Lumen Range (lumens):
800 - 4,000 lm
Power Range:
6 - 37 W
LED qty:
8 / 16
Distribution:
Narrow (Diamond+ A1)
Medium (Diamond+ A5)
Wide (Diamond+ C2)
Colour Temperature (CCT):
2700K
3000K
4000K
4000K SunLike
Colour rendering (CRI):
70Ra (3000K / 4000K)
80Ra (2700K)
95Ra (4000K SunLike)
Max efficacy (luminaire lumens):
Up to 172lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220 - 240V
Drive Current Range:
300mA / 500mA / 700mA
Dimming:
1-10V, DALI
Controls:
Photocell
Part-night switching
Pre-programmed dimming
Integral CMS
Presence detector
Emergency version
Surge protection:
10kV
Driver:
Fully programmable

Mechanical and installation

Materials:
Body: Die-cast aluminium
Glazing: Clear or frosted polycarbonate
Seals: Silicone
Finish:
Textured polyester powder coat
Product colours:
RAL 9016 White
RAL 9005 Black
RAL 7035 Light grey
RAL 7046 Mid grey
RAL 9006 Aluminium
RAL 9007 Metallic grey
DB 703 Metallic dark grey
Corten brown
Other RAL colours on request
Operating temp (°C):
-25°C to +40°C
Mounting:
Wall mount

Dimensions

kirium wall front product variant dimensions drawing lighting W573px
Dimensions (mm):
  • A 340
  • B 235
Weight (kg):
3.5
kirium wall side product variant dimensions drawing lighting W573px
Dimensions (mm):
  • C 182
Weight (kg):
3.5
