Pall Mall
Overview
Specification
Dimensions
Downloads (6)
Enquire now

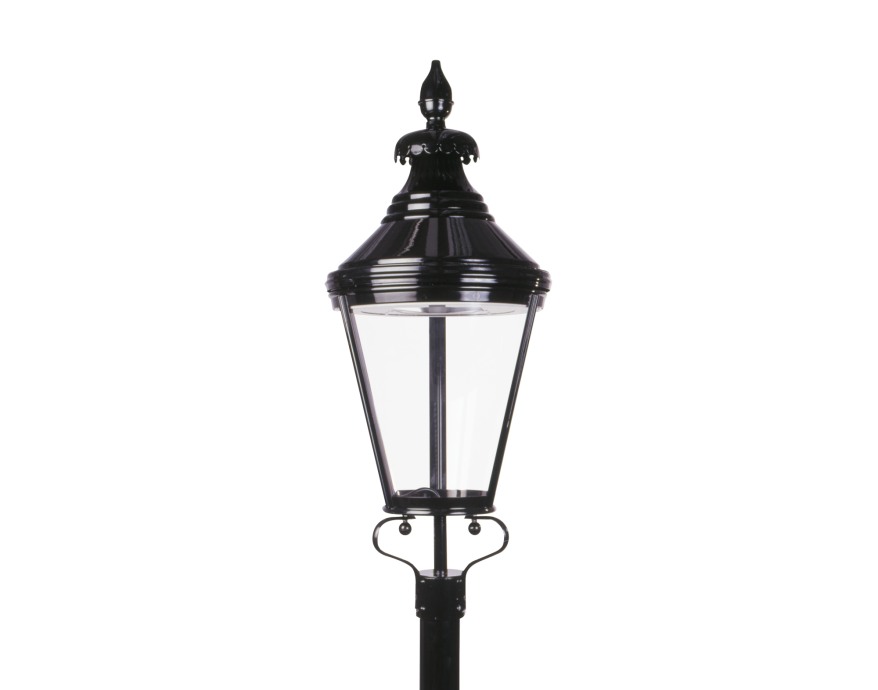

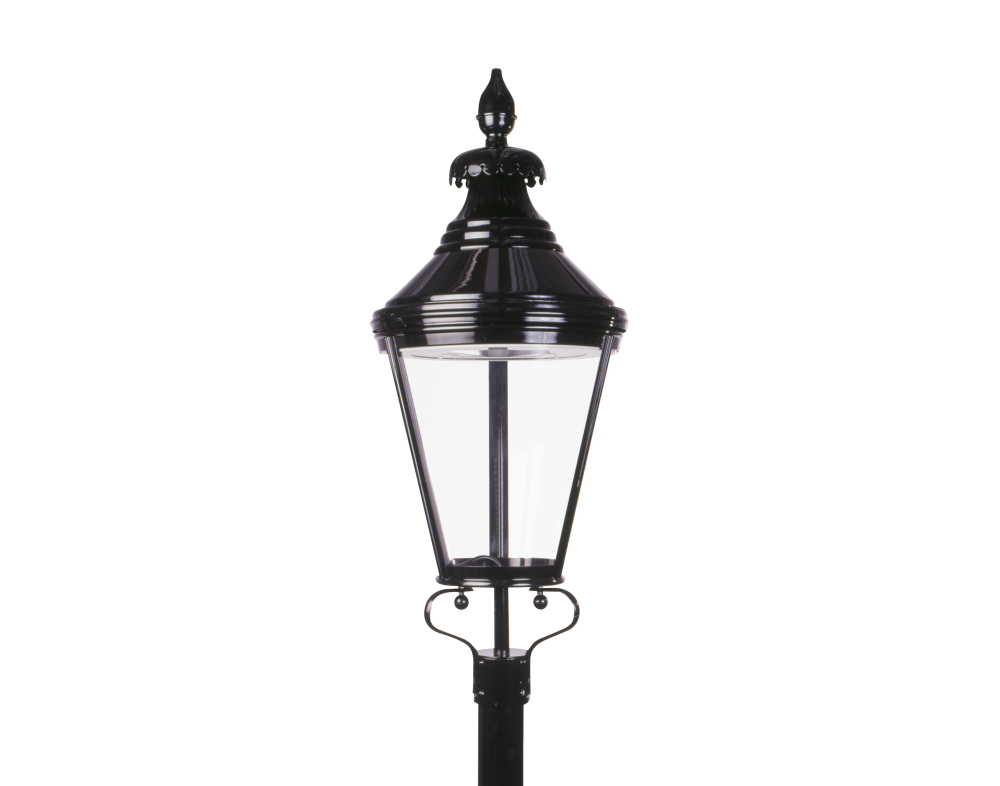

pall mall product slider product image lighting 2000x1572px

Simple, sleek copper luminaire

Pall Mall is inspired by lanterns first seen in Royal Parks and Regency period developments. They feature a single-piece glazing cone and decorative dome set manufactured from copper and are recommended for mounting up to six metres.

  • Recommended for mounting at 4-6 metres
  • Handcrafted in copper with a decorative dome and signature nameplate
  • Polycarbonate glazing for ingress protection and added durability
  • Available with a range of LED solutions to suit your application

Contact us

Product in this range

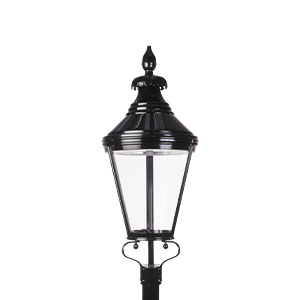

pall mall 300x300px

Pall Mall

Weight: 10.2kg

Windage: 0.2m2

Contact us to find out more

Pall Mall

Diamond+ Optics

Pall Mall is available with a wide range of standard optical distributions for ultimate flexibility while ensuring light is only placed where needed.

Handcrafted in copper

Pall Mall is handcrafted in copper by experts in our on-site factory, creating a long-lasting solution that perfectly integrates into historic locations.

Durable glazing

Pall Mall has been curated with one-piece polycarbonate glazing for improved ingress protection and added durability and has been awarded a rating of IP65 and IK07.

Classic design, modern technology

Advances in LED technology mean that in addition to higher quality light, you can also reduce costs, make energy sayings, and take advantage of future technologies.

More on Diamond+ Optics

Contact us

Our Heritage range

Check out our brochure

Heritage LED Light engines

To support a variety of applications, our Heritage lanterns are offered with a range of LED light engines. So whether you're looking for a high-performance light source to maximise energy savings, or something with a more traditional appearance, we have a solution for you.



Performance LED

Best for applications where performance and flexibility are key

Performance CoB

Best for applications which require a single, high performance light source

Comfort CoB®

Best for applications where a more traditional appearance is needed

Standard colours

RAL 9005 Fine textured black colour swatch 548x548px

RAL 9005

Black

RAL 7016 Anthracite grey colour swatch 548x548px

RAL 7016

Anthracite grey

RAL 7037 Dusty grey colour swatch 548x548px

RAL 7037

Dusty grey

RAL 5003 Sapphire blue colour swatch 548x548px

RAL 5003

Sapphire blue

RAL 6005 Light moss green colour swatch 548x548px

RAL 6005

Light moss green

RAL 3005 Wine red colour swatch 548x548px

RAL 3005

Wine red

To personalise your scheme, other RAL colours available on request.

Detailed Specification

Product specification

Electrical Class:
I
IP rating:
IP65
IK rating:
IK07
Certifications:
CE
Mounting Height (m):
4-6
Applications:
Public realm
High street & road lighting
Paths & walkways
Rail
Car parks

Lighting

Lumen Range (lumens):
350-12000
LED qty:
1-16

Power and control

Controls:
Miniature photocell
Part-night switching
Pre-programmed dimming
Integral CMS
Sensor ready

Mechanical and installation

Materials:
Body: Copper
Coronet: Aluminium
Entry: Corrosion protected steel
Access: Body coloured stainless steel latches
Seals: Silicone rubber
Finish:
Natural copper
Polished and lacquered copper
Polyester powder coat
Product colours:
RAL 9005 Black
RAL 7016 Anthracite grey
RAL 7037 Dusty grey
RAL 5003 Sapphire blue
RAL 6005 Light moss green
RAL 3005 Wine red
Natural copper finish
Polished and lacquered copper finish
Other RAL colours on request
Operating temp (°C):
-45°C to +50°C
Mounting:
Traditional Frog: Ø76mm

Dimensions

Pall Mall product dimension drawing W573px
Dimensions (mm):
  • A 787
  • Ø B 397
  • Ø C 76
  • D 115
Weight (kg):
10.2
Windage (m2):
0.2
