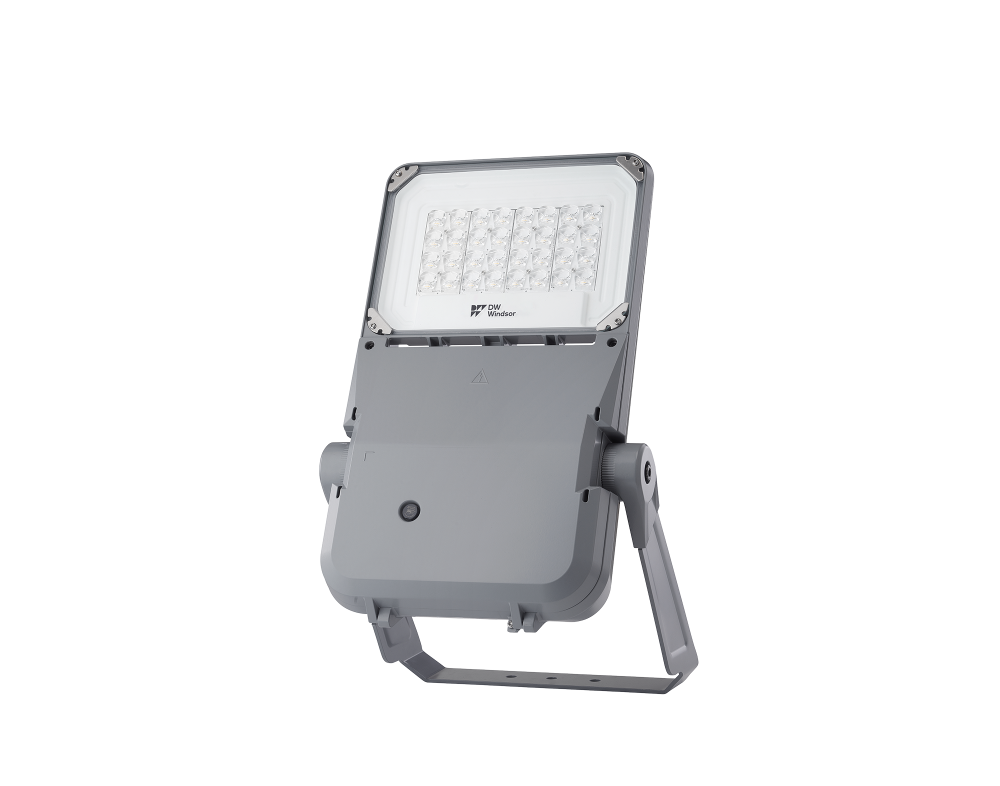

product slider product image lighting 2000x1572px kirium flood mg shadow

Floodlighting, redefined



Kirium Flood delivers powerful, high-quality illumination. Designed for performance
and efficiency, it ensures optimal visibility while minimising energy consumption.

Products in this range

Kirium Flood 4



Lumen Output up to 50,000lm
 Power up to 309W
 Weight 16.5kg

Product features

Precision illumination

Kirium Flood features a secure tilt lock mechanism, adjustable in 2.5° steps, ensuring accurate light placement for optimal performance.

Thermally optimised

Designed with CoolZone™ technology, Kirium Flood efficiently manages heat, enabling high-power illumination with long-term reliability.

Smart connectivity

Supports a range of control and connectivity options, including NEMA and Zhaga sockets, for seamless integration with smart lighting systems.

Built-in alignment

An integrated level ensures precise, consistent aiming, simplifying installation and setup for maximum accuracy.

Standard colours

RAL 7046 Textured grey colour swatch 548x548px

RAL 7046

Mid Grey

To personalise your scheme, other RAL colours available on request

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK09
Certifications:
UKCA, CE
Applications:
Area lighting
Buildings

Lighting

Light source:
High power LED
Lumen Range (lumens):
Up to 50,000 lm
Power Range:
Up to 309 W
LED qty:
128 /160
Distribution:
5 Diamond+ Optics (A / B / C / F)
Colour Temperature (CCT):
3000K
4000K
Colour rendering (CRI):
70Ra
Max efficacy (luminaire lumens):
Up to 177lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220 - 240V
Drive Current Range:
200mA - 750mA (in 50mA increments)
Controls:
Pre-programmed dimming
Presence detector
NEMA socket
Zhaga Book 18 socket
CMS
Sensor ready
Surge protection:
10kV
Driver:
Fully programmable

Mechanical and installation

Tilt / inclination:
2.5° increments
Materials:
Body: High-pressure die-cast aluminium
Seals: Silicone
Glazing: Toughened glass
Finish:
Smooth polyester powder coat
Product colours:
RAL 7046 Mid grey
Other RAL colours on request
Operating temp (°C):
-20°C to +50°C
Mounting:
Stirrup Bracket

Dimensions

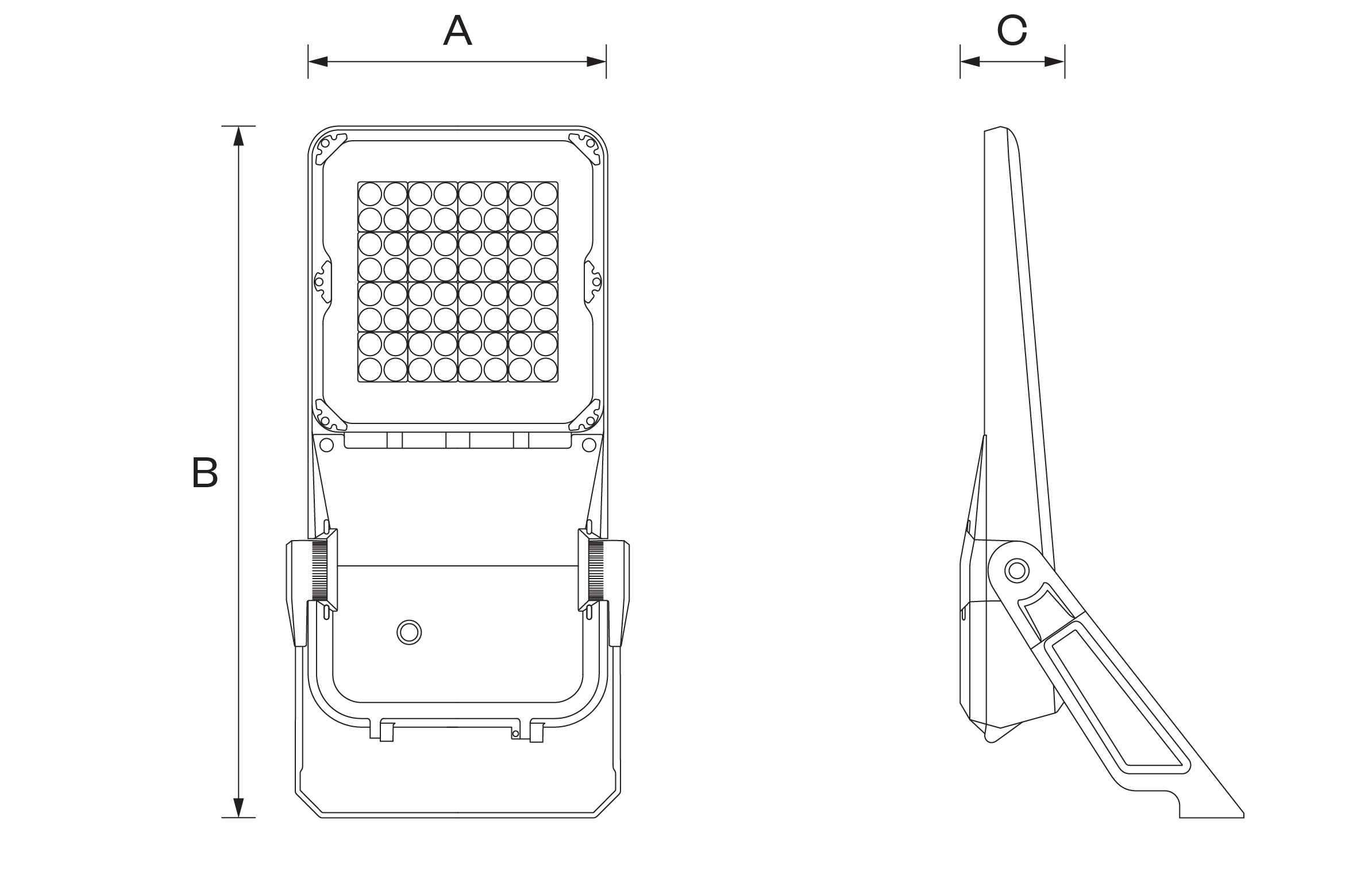

dww website dimensioned drawings kirium flood 4
Dimensions (mm):
  • A 548
  • B 654
  • C 112
Weight (kg):
16.5
Windage (m2):
0.087
