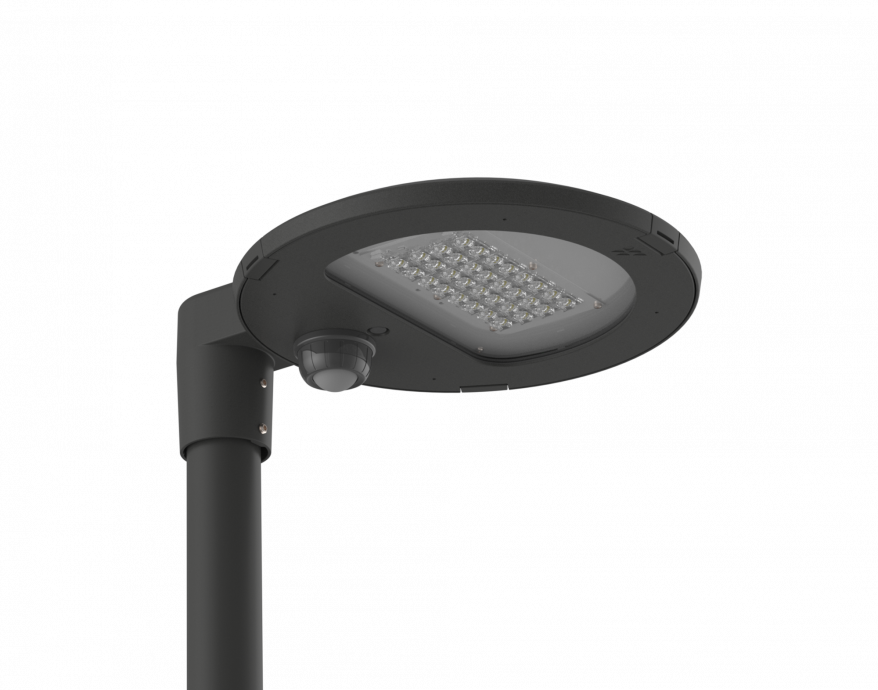

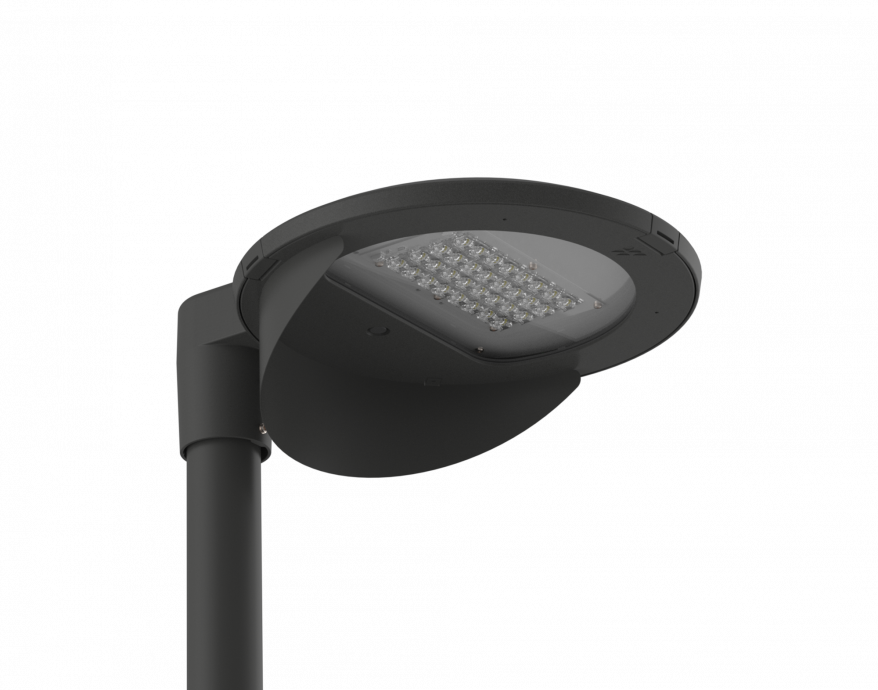

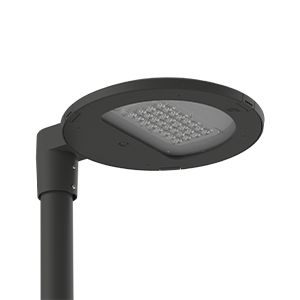

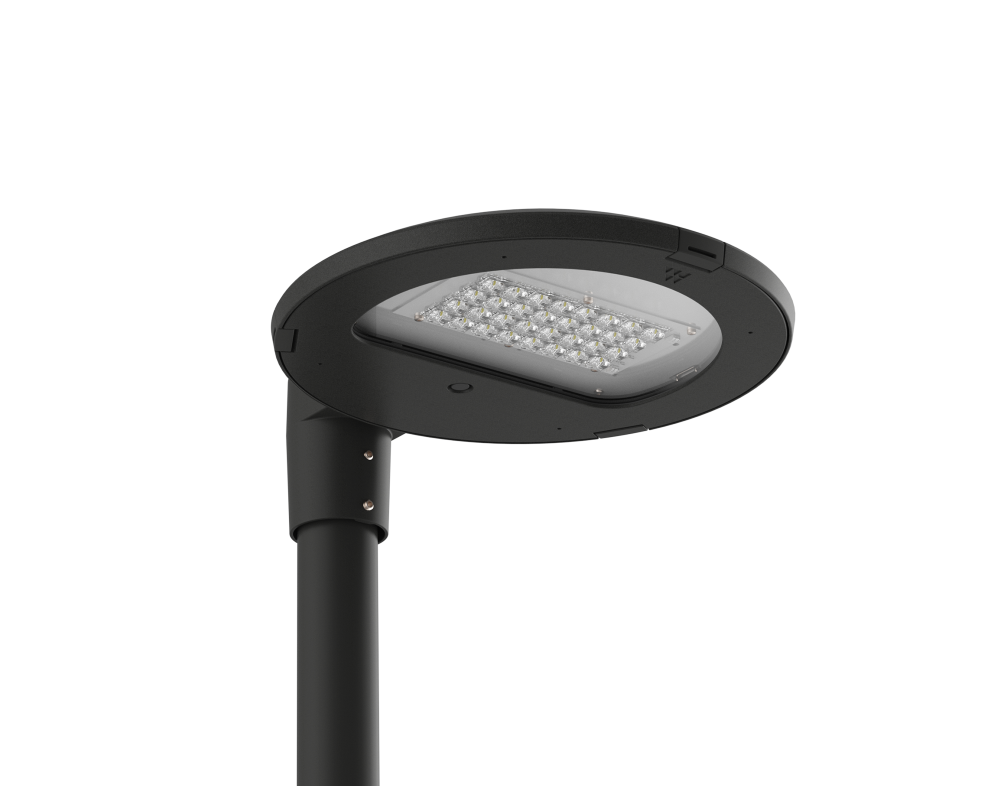

daytona ds product slider product image lighting 2000x1572px 2

All-round performance



Daytona balances style, efficiency and practicality to deliver a luminaire capable of maximising
performance while providing outstanding service life to support the circular economy.

Product features

Products in this range

Standard Colours

RAL 7035 Light grey colour swatch 548x548px

RAL 7035

Light Grey

RAL 7046 Textured grey colour swatch 548x548px

RAL 7046

Mid Grey

RAL 7035 Light grey colour swatch 548x548px

DB 703

Metallic Dark Grey

RAL 7035 Light grey colour swatch 548x548px

RAL 9005

Black

To personalise your scheme, other RAL colours available on request

Detailed Specification

Product specification

Electrical Class:
I (II on request)
IP rating:
IP66
IK rating:
IK10
Certifications:
UKCA, CE
Mounting Height (m):
4 - 10 m
Applications:
Roads
Footpaths
Cycleways
Car parks
Housing developments
Rail

Lighting

Light source:
High power LED
Lumen Range (lumens):
1,050 - 25,700 lm
Power Range:
6 - 187 W
LED qty:
8 - 64
Distribution:
14 Diamond+ Optics (A / B / C / Z)
Colour Temperature (CCT):
2700K
3000K
4000K
Tunable White
Colour rendering (CRI):
70Ra
Max efficacy (luminaire lumens):
Up to 193lm/W
L90 Lifetime Estimate:
>100,000hrs

Power and control

Voltage:
220 - 240V
Drive Current Range:
250mA - 1050mA (in 50mA increments)
Dimming:
DALI, Bluetooth
Controls:
Photocell
Part-night switching
Pre-programmed dimming
Presence detector
NEMA socket
Zhaga Book 18 socket
CMS
Sensor ready
Surge protection:
8kV
Driver:
Fully programmable
Driver included:
Yes

Mechanical and installation

Materials:
Body: High-pressure die-cast aluminium
Seals: Silicone
Glazing: Toughened glass / Polycarbonate
Finish:
Polyester powder coat
Marine-grade coating
Product colours:
RAL 7046 Mid grey
RAL 7035 Light grey
RAL 9005 Black
DB 703 Metallic dark grey
Other RAL colours on request
Operating temp (°C):
-40°C to +40°C
Mounting:
Side Entry: Ø34mm - Ø42mm / Ø60mm
Direct Post: Ø76mm / Ø60mm

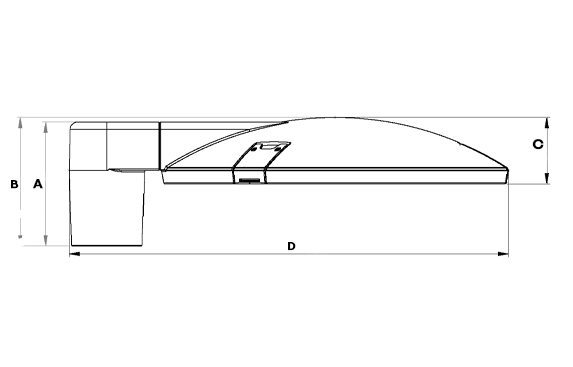

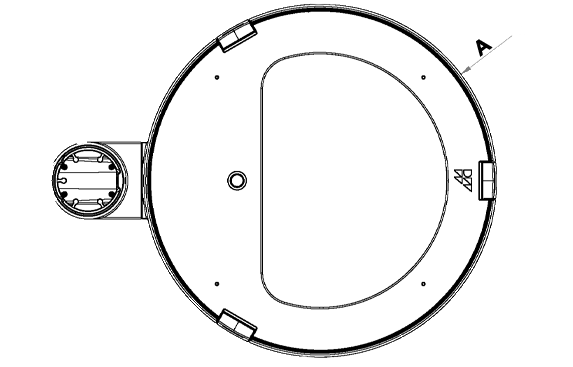

Dimensions

dww website dimensioned drawings daytona 451
Dimensions (mm):
  • A 480
  • B 580
  • C 170
  • D 90
  • E 350
Weight (kg):
8.7
Windage (m2):
0.043
dww website dimensioned drawings daytona 500
Dimensions (mm):
  • A 580
  • B 700
  • C 190
  • D 110
  • E 430
Weight (kg):
13.5
Windage (m2):
0.065
